Material flow is the backbone of concrete production efficiency. Whether a plant handles dry aggregates, wet mixing, or fully automated production, the way materials travel—from feeding to weighing to mixing—directly shapes output quality, consistency, and operational cost. Different types of concrete batching plant adopt distinct workflow layouts, equipment configurations, and control mechanisms, leading to significant variations in productivity, precision, and suitability for project conditions. Understanding these differences helps contractors and concrete suppliers choose the right plant model and optimize workflow performance.

1. Material Flow in Dry Batch Concrete Plants

Dry batch plants rely on a streamlined workflow where materials are measured and discharged directly into the transit mixer without central mixing.

In a typical dry batch setup, aggregates flow from feed bins through the weighing system and into a loading chute. Cement and additives follow separate metering lines before combining with the aggregates at the truck's inlet. All components meet only inside the transit mixer.

This system shortens plant-side processing time because the mixer truck performs the wet mixing on the way to the job site. As a result, material flow is fast, simple, and suitable for high-traffic ready-mix operations.

However, because mixing occurs off-site, the plant must ensure extremely precise dosing. Any deviation in cement, water, or admixtures may lead to inconsistent quality once ingredients mix inside the truck.

2. Material Flow in Wet Batch Concrete Plants

Wet batch plants differ mainly in the presence of a central mixer that processes materials before loading the truck. This change dramatically affects material flow.

Aggregates, cement, water, and additives travel through individual metering systems and converge inside a twin-shaft or planetary mixer. The central mixer homogenizes the materials before the concrete is discharged into a transit mixer or dump truck.

Material flow is more controlled because all blending happens within the plant. The operator can adjust slump, mixing time, and uniformity with precision, improving concrete quality for demanding applications such as precast or infrastructure projects.

Wet plants also reduce mixing time for delivery trucks, allowing faster turnaround and higher productivity, especially in urban or high-volume environments.

3. Material Flow in Mobile Concrete Batching Plants

Mobile batching plants redefine material flow based on portability and rapid setup. Their compact modules change the arrangement of aggregates, cement feeding, and water supply.

Mobile units typically adopt a linear material flow layout. Aggregates move from onboard hoppers to the weighing system, while cement is fed from a portable silo or horizontal silo. All flows converge in a small but efficient central mixer.

Because modules fold and transport easily, material paths are shorter and more integrated. The compact layout reduces material loss and enhances dosing accuracy even on temporary or remote job sites.

Still, mobile concrete batch plant material flow depends on reliable power supply and stable ground setup. Rough terrains require careful calibration to prevent inconsistent weighing or aggregate segregation.

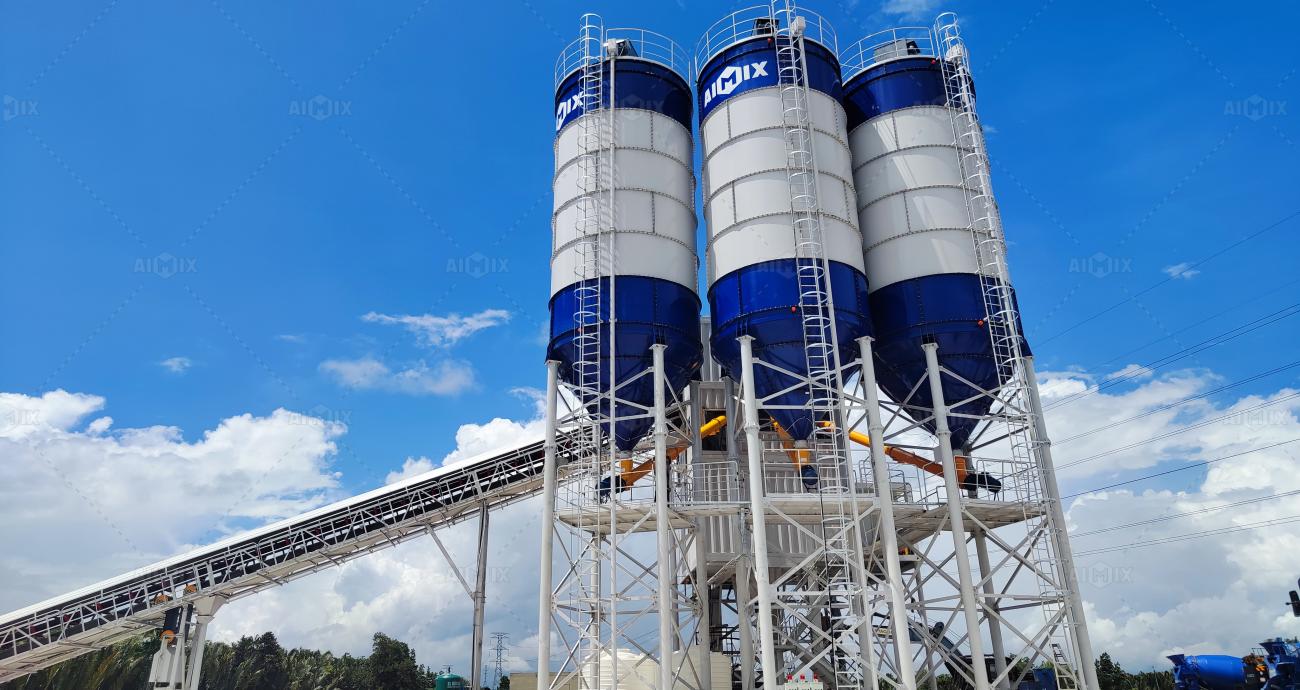

4. Material Flow in Stationary Concrete Batching Plants

Stationary plants are designed for continuous, high-volume operation, and their material flow reflects this stability.

Aggregates travel through large-capacity batchers and conveyors that ensure smooth, uninterrupted feeding. Cement flows from fixed silos through screw conveyors to large weighing hoppers. Water and admixture dosing systems operate with high repeatability due to fixed piping and automated controls.

With dedicated foundations and robust structures, stationary plants allow longer material paths without compromising accuracy. The system supports large mixers, multiple aggregate bins, and advanced moisture sensors to fine-tune water-cement ratios during material flow.

This makes stationary plants ideal for commercial concrete suppliers, highway construction, and long-term industrial production.

5. Material Flow in Precast Concrete Batching Plants

Precast plants prioritize consistent concrete properties, and their material flow is optimized for precision and repeatability.

Aggregates often pass through controlled vibrating feeders to maintain uniform flow rates. Cement and supplemental cementitious materials use multi-stage dosing to ensure exact proportions for high-strength mixes.

Once weighed, all materials flow into high-intensity mixers capable of producing low-slump or specialized concrete. The flow from mixer to buckets or conveyors is also carefully controlled to prevent segregation.

Every movement—from hopper outlet to mold filling—must be synchronized, making precast plants one of the most precise types of batching systems.

6. Material Flow in Continuous Concrete Mixing Plants

Continuous mixing plants handle material flow in an uninterrupted stream rather than batch cycles. This makes the flow mechanism fundamentally different.

Aggregates, cement, water, and additives enter the mixer simultaneously through calibrated feed systems that maintain constant flow rates. As materials move through the long continuous mixer, they form a consistent stream of concrete with uniform composition.

Unlike batch plants where materials wait in hoppers, continuous plants rely heavily on consistent feed rate. Any fluctuation in moisture, density, or aggregate size can disrupt the entire flow.

These plants are ideal for large-scale, time-critical projects such as pavement construction and dam building.

Conclusion

Material flow varies significantly among different types of concrete batching plant, shaping the plant’s efficiency, mix consistency, and operational suitability. Dry batch plants prioritize speed, while wet batch plants focus on quality control. Mobile units simplify flow for flexible sites, whereas stationary plants maximize volume and stability. Precast plants demand tight precision, and continuous plants deliver uninterrupted production.

Understanding these differences allows buyers, contractors, and concrete producers to select the plant type that best aligns with project requirements, production targets, and long-term operational goals.
